1994 Volvo 940 Fuel Pump Relay Location

Blowing fuel pump fuse.

1994 volvo 940 fuel pump relay location.

Random stalling will not start fuel pump and relay testing volvo 850 s70 v70 v70 xc etc. I purchased the new relay but found a space in the relay location behind the fuse board where the relay should go with no wiring to that location. I want to replace the fuel ignition relay fuel pump relay on my 1994 volvo 940 gle. Position function ampere rating a 1 fuel pump main engine control systems 25 2 central locking hazard warning flashers headlight flashers.

Hello the fuel pump relay is near. Volvo 940 1994 fuse box diagram year of production. 1994 1995 940 b230fd non turbo cars using either bosch or regina have rather square squat blue colored fuel injection relays in the front row second from right.

1994 volvo 940 wagon where is the fuel pump relay replaced fuel pump fuses are good still no fuel. The problem i have is it keeps blowing the fuel pump fuse. The car was built in sweden. Fuse panel identification 1993 95 courtesy of volvo cars of north america.

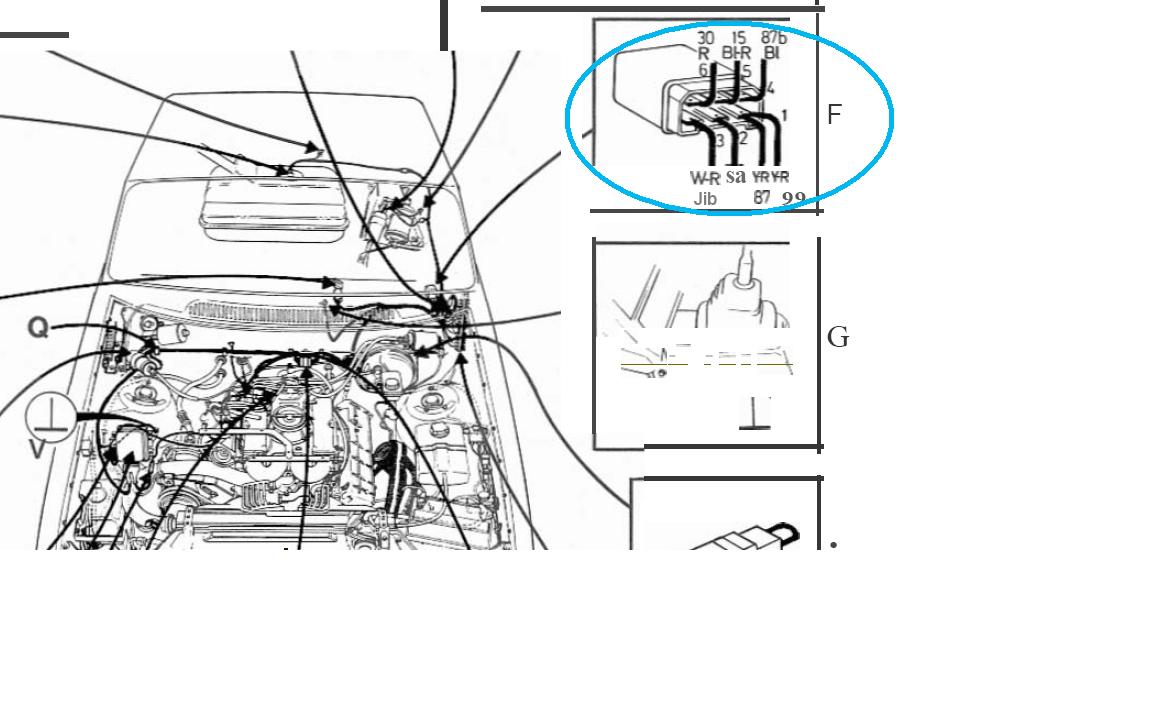

You may also perform a jumper bypass on this relay plug using the same jumper wire shown above. 94 volvo how to fix an o d relay. Does this model not have a fuel pump relay or is it located somewhere else. The 1994 95 940 fuel pump relay relay m in the diagram image blue relay is in a large multi relay panel behind the ash tray in the center dash console.

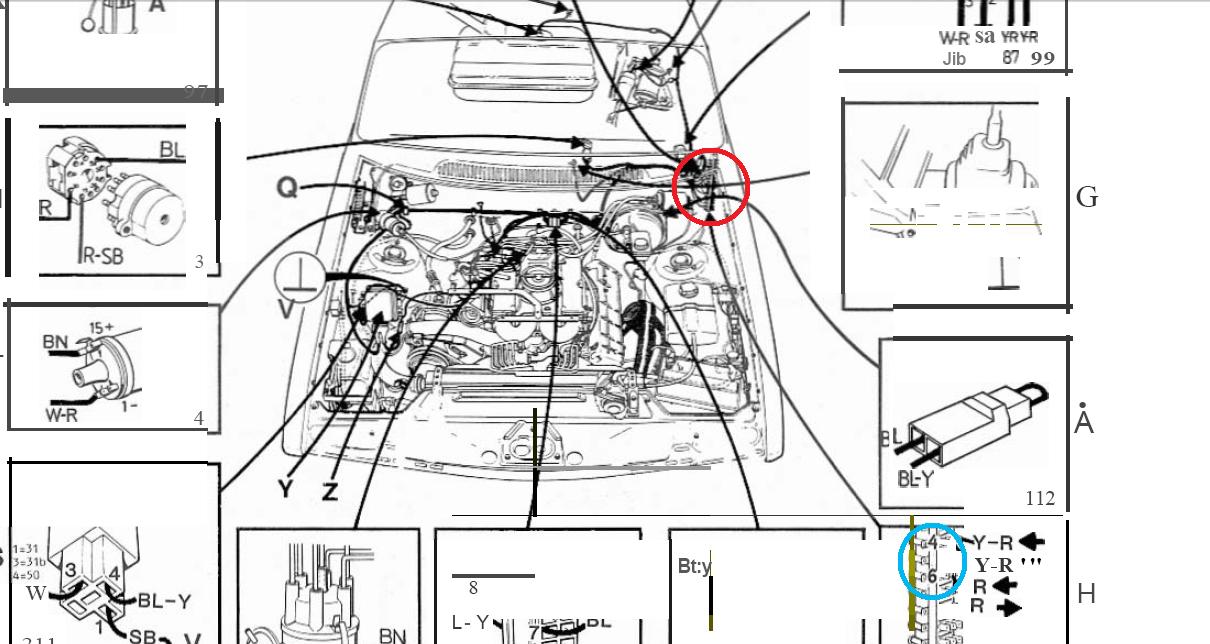

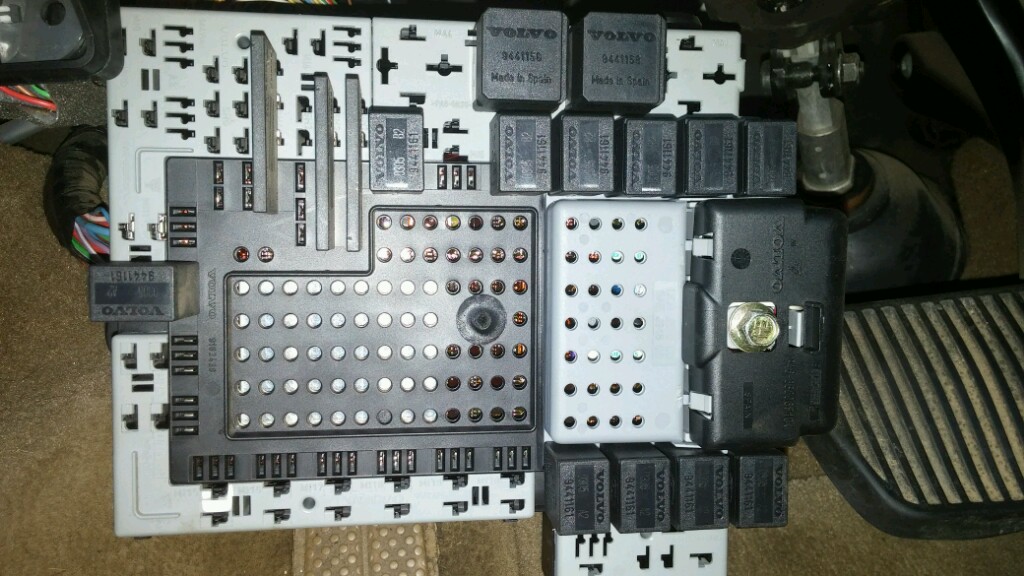

1994 fuse box in instrument panel the fuses and relays are located in the central electrical unit behind the ashtray in the center console. 740 all 760 1983 87 940 all except se d 1 bulb failure sensor seat belt reminder windshield wiper delay tailgate wiper delay fuel injection system relay impulse relay 1982 or front foglights flasher unit main lighting relay 1983 overdrive relay j window winders electric fan l r. Robert diy 110 457 views. Sgfm relays in most cars pull straight up from the relay base.
